M5M5116FP-15, M5M5116FP - 16K-Bit CMOS Static RAM

Name: M5M5116FP-15
SKU: M5M5116FP-15-1110768

Mitsubishi

📥 Download Datasheet

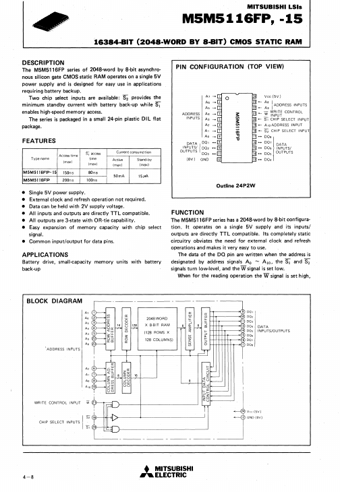

M5M5116FP-15 Datasheet Preview — This datasheet PDF includes multiple part numbers: M5M5116FP-15, M5M5116FP. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	M5M5116FP-15, M5M5116FP
Manufacturer	Mitsubishi
File Size	309.91 KB
Description	16K-Bit CMOS Static RAM
Datasheet	M5M5116FP-Mitsubishi.pdf
Note	This datasheet PDF includes multiple part numbers: M5M5116FP-15, M5M5116FP. Please refer to the document for exact specifications by model.

M5M5116FP-15 Product details

Description

The M5M5116FP series of 2048-word by 8-bit asynchronous silicon gate CMOS static RAM operates on a single 5V power supply and is designed for easy use in applications requiring battery backup. up while SI enables high-speed memory access.

Features

Type name Access time (max) M5M5116FP-15 150ns M5M5116FP 200ns S";" access time (max) 80ns 100ns Current consumption Active (max) Stand-by (max) SOmA 15i'A.
Single 5V power supply.
External clock and refresh operation not required.
Data can be held with 2V supply voltage.
All inputs and outputs are directly TTL compatible.
All outputs are 3-state with OR-tie capability.
Easy expansion of memory capacity with chip select signa.
