M5M5116P-15, M5M5116P 16K-Bit CMOS Static RAM

M5M5116P-15 Description

MITSUBISHI LSls M5M5116P, -15 16384-BIT (2048-WORD BY 8-BIT) CMOS STATIC RAM .
The M5M5116P series of 2048-word by 8-bit asynchronous silicon gate CMOS static RAM operates on a single 5V power supply and is designed for easy use.

M5M5116P-15 Features

* Type name Access time (max) M5M5116P-15 M5M5116P 150ns 200ns S7 access time (max) 80ns 100n8 Current consumption Active (max) Stand-by (max) SOmA 15,uA
* Single 5V power supply.
* External clock and refresh operation not required.
* Data can be held with 2V supply

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: M5M5116P-15, M5M5116P. Please refer to the document for exact specifications by model.

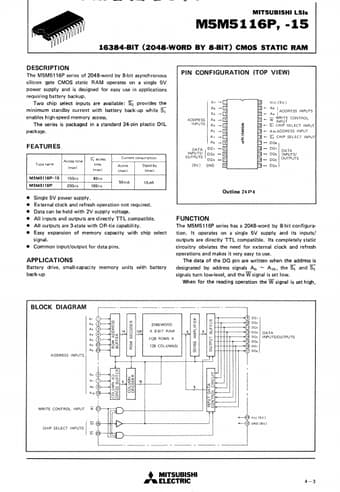

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
M5M5116P-15, M5M5116P
Manufacturer
Mitsubishi
File Size
303.41 KB
Datasheet
M5M5116P-Mitsubishi.pdf
Description
16K-Bit CMOS Static RAM
Note
This datasheet PDF includes multiple part numbers: M5M5116P-15, M5M5116P.
Please refer to the document for exact specifications by model.
