M5M5116P - 16K-Bit CMOS Static RAM

Name: M5M5116P
SKU: M5M5116P-1110765

Mitsubishi

📥 Download Datasheet

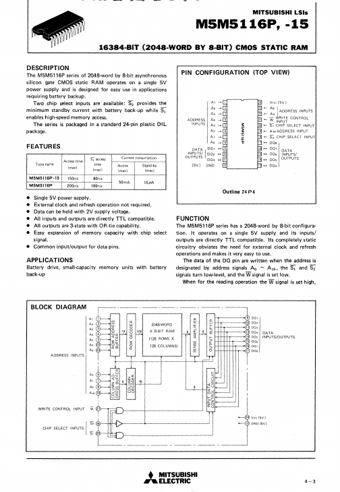

M5M5116P Datasheet Preview — Preview of M5M5116P PDF

Datasheet Details

Part number	M5M5116P
Manufacturer	Mitsubishi
File Size	303.41 KB
Description	16K-Bit CMOS Static RAM
Datasheet	M5M5116P-Mitsubishi.pdf

M5M5116P Product details

Description

The M5M5116P series of 2048-word by 8-bit asynchronous silicon gate CMOS static RAM operates on a single 5V power supply and is designed for easy use in applications requiring battery backup.

Features

Type name Access time (max) M5M5116P-15 M5M5116P 150ns 200ns S7 access time (max) 80ns 100n8 Current consumption Active (max) Stand-by (max) SOmA 15,uA.
Single 5V power supply.
External clock and refresh operation not required.
Data can be held with 2V supply voltage.
All inputs and outputs are directly TTL compatible.
All outputs are 3-state with OR-tie capability.
Easy expansion of memory capacity with chip select signal.
