M5M5117FP-15 Datasheet - Mitsubishi

16K-Bit CMOS Static RAM

M5M5117FP-15 Features

* pin compatibility with the M5L2716K 16K EPROM and M58725P 16K static RAM, and it is packaged in a small 24-pin plastic OIL flat package. FEATURES Type name Access time (max) M5M5117FP-15 150ns M5M5117FP 200ns DE access time (max) 80ns lOOns Current consumption Active (max) Stand-by (max)

M5M5117FP-15 General Description

The M5M5117FP series of 2048-word by 8-bit asynchronous silicon gate CMOS static RAM operates on a single 5V power supply and is designed for easy use in applications requiring battery backup. A chip select input, S, is available to provide the minimum standby current with battery back-up while an o.

M5M5117FP-15 Datasheet (316.05 KB)

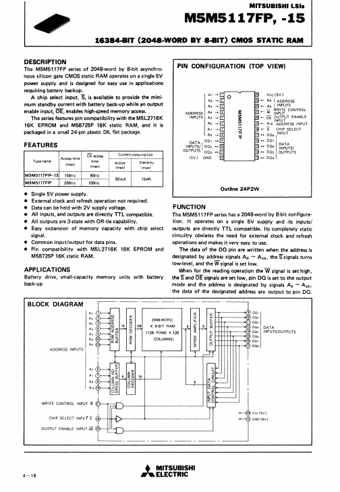

Preview of M5M5117FP-15 PDF

Datasheet Details

Part number:

M5M5117FP-15

Manufacturer:

Mitsubishi

File Size:

316.05 KB

Description:

16k-bit cmos static ram.
