M62002L - LOW POWER 2 OUTPUT SYSTEM RESET IC SERIES

Product Overview

Mitsubishi

Datasheet Details

Part number	M62002L
Manufacturer	Mitsubishi
File Size	74.88 KB
Description	LOW POWER 2 OUTPUT SYSTEM RESET IC SERIES
Datasheet	M62002L Datasheet

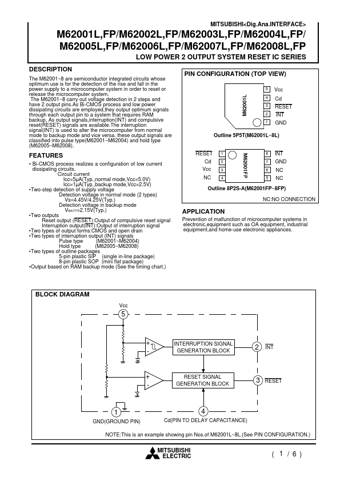

Additional preview pages of the M62002L datasheet.

Product details

Description

The M62001~8 are semiconductor integrated circuits whose optimum use is for the detection of the rise and fall in the power supply to a microcomputer system in order to reset or release the microcomputer system.

Features

Bi-CMOS process realizes a configuration of low current dissipating circuits. Circuit current Icc=5µA(Typ. ,normal mode,Vcc=5.0V) Icc=1µA(Typ. ,backup mode,Vcc=2.5V).
Two-step detection of supply voltage Detection voltage in normal mode (2 types) Vs=4.45V/4.25V(Typ. ) Detection voltage in backup mode VBATT=2.15V(Typ. ).
Two outputs Reset output (RESET):Output of compulsive reset signal Interruption output(INT):Output of interruption signal.
Two types of output forms.
