M62003FP

LOW POWER 2 OUTPUT SYSTEM RESET IC SERIES

Mitsubishi

M62003FP Features

* Bi-CMOS process realizes a configuration of low current dissipating circuits. Circuit current Icc=5µA(Typ.,normal mode,Vcc=5.0V) Icc=1µA(Typ.,backup mode,Vcc=2.5V)

* Two-step detection of supply voltage Detection voltage in normal mode (2 types) Vs=4.45V/4.25V(Typ.) Detection voltag

M62003FP General Description

The M62001~8 are semiconductor integrated circuits whose optimum use is for the detection of the rise and fall in the power supply to a microcomputer system in order to reset or release the microcomputer system. The M62001~8 carry out voltage detection in 2 steps and have 2 output pins.As Bi-CMOS pr.

M62003FP Datasheet (74.88 KB)

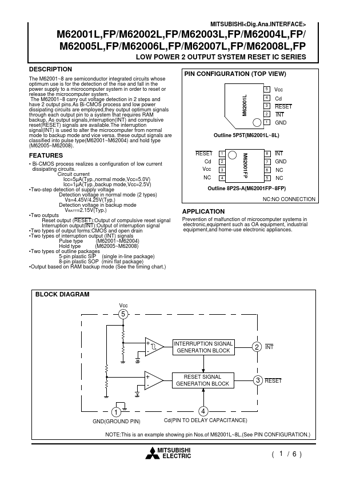

M62003FP Datasheet Preview — Preview of M62003FP PDF

Datasheet Details

Part number:

M62003FP

Manufacturer:

Mitsubishi

File Size:

74.88 KB

Description:

Low power 2 output system reset ic series.
MITSUBISHI M62001L,FP/M62002L,FP/M62003L,FP/M62004L,FP/ M62005L,FP/M62006L,FP/M62007L,FP/M62008L,FP LOW POWER 2 OUTPUT SYSTEM RESE.
