M62722ML

VOLTAGE DETECTING / SYSTEM RESETTING IC

Mitsubishi

M62722ML Features

* Detecting Voltage M627X2,M627X3 …… 2.87V M627X4,M627X5 …… 2.58V M627X6,M627X7 …… 2.39V M627X8,M627X9 …… 1.72V

* Hysterisis Voltage ………………………… 80mV

* Delay Time M6270X ………… 0sec M6271X ………… 200 µsec M6272X ………… 50msec M6273X ………… 100msec M6274X ………… 200msec

* Few ext

M62722ML General Description

The M627XXML/SL is a voltage threshold detector designed for detection of a supply voltage and generation of a system reset pulse for almost all logic circuits such as microprocessor. It also has extensive applications including battery checking, level detecting and waveform shaping circuits. FEATUR.

M62722ML Datasheet (21.60 KB)

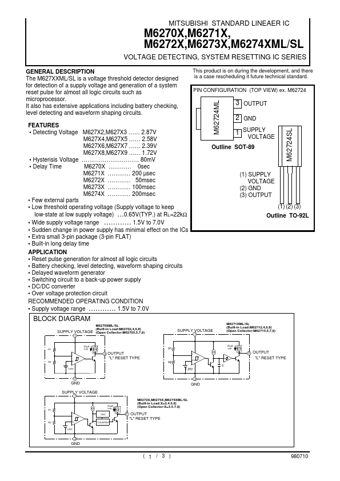

M62722ML Datasheet Preview — Preview of M62722ML PDF

Datasheet Details

Part number:

M62722ML

Manufacturer:

Mitsubishi

File Size:

21.60 KB

Description:

Voltage detecting / system resetting ic.
