M62722SL - VOLTAGE DETECTING / SYSTEM RESETTING IC

Mitsubishi

The M62722SL by Mitsubishi is a VOLTAGE DETECTING / SYSTEM RESETTING IC. Below is the official datasheet preview.

📥 Download Datasheet

M62722SL VOLTAGE DETECTING / SYSTEM RESETTING IC by Mitsubishi - Datasheet Preview — Official preview page of the **M62722SL** VOLTAGE DETECTING / SYSTEM RESETTING IC datasheet (Mitsubishi).

Datasheet Details

Part number	M62722SL
Manufacturer	Mitsubishi
File Size	21.60 KB
Description	VOLTAGE DETECTING / SYSTEM RESETTING IC
Datasheet	M62722SL_MitsubishiElectricSemiconductor.pdf

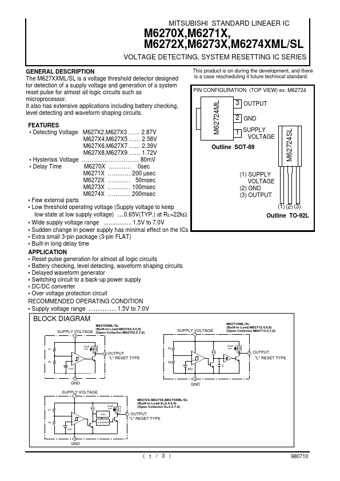

Additional preview pages of the M62722SL datasheet.

M62722SL Product details

Description

The M627XXML/SL is a voltage threshold detector designed for detection of a supply voltage and generation of a system reset pulse for almost all logic circuits such as microprocessor.

Features

Detecting Voltage M627X2,M627X3 …… 2.87V M627X4,M627X5 …… 2.58V M627X6,M627X7 …… 2.39V M627X8,M627X9 …… 1.72V.
Hysterisis Voltage ………………………… 80mV.
Delay Time M6270X ………… 0sec M6271X ………… 200 µsec M6272X ………… 50msec M6273X ………… 100msec M6274X ………… 200msec.
Few external parts.
Low threshold operating voltage (Supply voltage to keep low-state at low supply voltage) …0.65V(TYP. ) at RL=22kΩ.
Wide supply voltage range ………… 1.5V to 7.0V.
S.
