Detach connectors.

G80, Detach Connectors

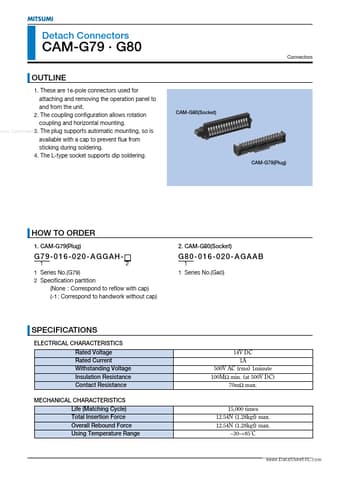

MITSUMI Detach Connectors CAM-G79 G80 Connectors OUTLINE 1.

These are 16-pole connectors used for attaching and removing the operation panel to and from the unit.

2.

The coupling configuration allows rotation coupling and horizontal mounting.

www.DataSheet4U.com 3.

The plug supports automatic mounting, so is available with a cap to prevent flux from sticking during soldering.

4.

The L-type socket supports dip soldering.

CAM-G80(Socket) CAM-G79(Plug) HOW TO ORDER 1.

CAM-G79(Plug) 2.
