G800N06, G800N06H Datasheet - GOFORD

G800N06 N-Channel Enhancement Mode Power MOSFET

G800N06 Features

* l VDS l ID (at VGS = 10V) l RDS(ON) (at VGS = 10V) l RDS(ON) (at VGS = 4.5V) 60V 3A < 80mΩ < 85mΩ l 100% Avalanche Tested l RoHS Compliant Schematic diagram Application l Power switch l DC/DC converters SOT-223 Ordering Information Device G800N06H Package SOT-223 Marking G800N06 Packaging

G800N06H-GOFORD.pdf

This datasheet PDF includes multiple part numbers: G800N06, G800N06H. Please refer to the document for exact specifications by model.

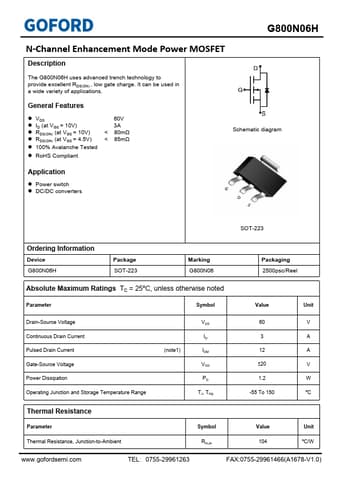

G800N06 Datasheet Preview Page 2 G800N06 Datasheet Preview Page 3

Datasheet Details

Part number:

G800N06, G800N06H

Manufacturer:

GOFORD

File Size:

869.92 KB

Description:

N-channel enhancement mode power mosfet.

Note:

This datasheet PDF includes multiple part numbers: G800N06, G800N06H.
Please refer to the document for exact specifications by model.
