BD675 Datasheet - Motorola Inc

BD675 Silicon NPN Transistor

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by BD675/D Plastic Medium-Power Silicon NPN Darlingtons . . . for use as output devices in complementary general purpose amplifier applications. High DC Current Gain hFE = 750 (Min) @ IC = 1.5 and 2.0 Adc Monolithic Construction BD675, 675A, 677, 677A, 679, 679A, 681 are complementary with BD676, 676A, 678, 678A, 680, 680A, 682 BD 677, 677A, 679, 679A are equivalent to MJE 800, .

BD675_MotorolaInc.pdf

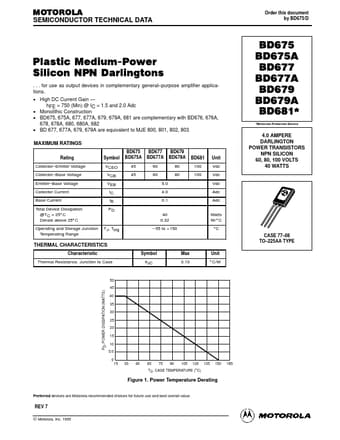

Preview of BD675 PDF
BD675 Datasheet Preview Page 2 BD675 Datasheet Preview Page 3

Datasheet Details

Part number:

BD675

Manufacturer:

Motorola Inc

File Size:

112.59 KB

Description:

Silicon npn transistor.
