BD676A Datasheet - Motorola Inc

BD676A, PNP Transistor

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by BD676/D Plastic Medium-Power Silicon PNP Darlingtons ...for use as output devices i.

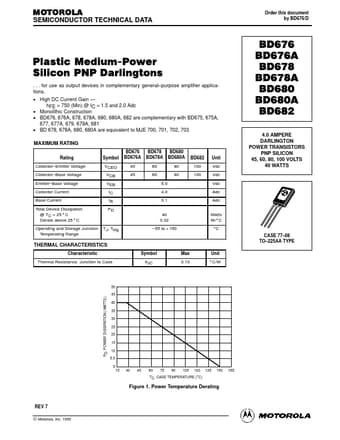

datasheet Preview Page 1 from Datasheet4u.com

BD676A_MotorolaInc.pdf

BD676A Datasheet Preview — Preview of BD676A PDF

Datasheet Details

Part number:

BD676A

Manufacturer:

Motorola Inc

File Size:

110.03 KB

Description:

PNP Transistor

Applications

* High DC Current Gain
* hFE = 750 (Min) @ IC = 1.5 and 2.0 Adc
* Monolithic Construction
* BD676, 676A, 678, 678A, 680, 680A, 682 are complementary with BD675, 675A, 677, 677A, 679, 679A, 681
* BD 678, 678A, 680, 680A are equivalent to MJE 700, 701, 702, 703
