BD6709FS

DC Brushless Fan Motor Drivers

BD6709FS Features

* 1) Power Tr incorporated (BD6709FS、BD6721FS) 2) Pre-driver compatible for external Tr (BD6718FV) 3) Low side power Tr incorporated half pre-driver (BD6722FS) 4) Current limiting circuit 5) PWM soft switching driver (BD6721FS、BD6722FS) 6) Soft start circuit (BD6722FS) 7) Lock protection and automatic

BD6709FS General Description

This is the summary of models that suit for 12V speed controllable fan for desktop PC and general consumer equipment. They employ Bi-CDMOS process, and realize low ON resistance, low power consumption. They incorporate lock protection and automatic restart circuit, current limiting circuit.
*Fea.

BD6709FS Datasheet (1.86 MB)

Preview of BD6709FS PDF

Datasheet Details

Part number:

BD6709FS

Manufacturer:

ROHM ↗

File Size:

1.86 MB

Description:

Dc brushless fan motor drivers.

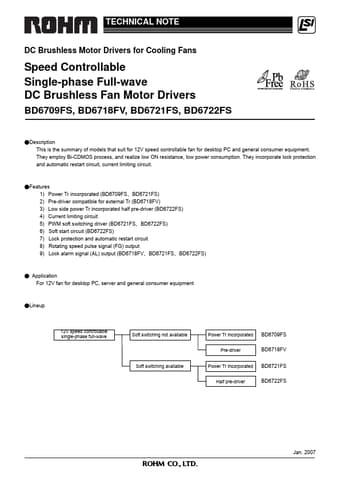

TECHNICAL NOTE DC Brushless Motor Drivers for Cooling Fans Speed Controllable Single-phase Full-wave DC Brushless Fan Motor Drivers BD6709FS, BD6718FV.
