BD6726FU, BD6726 Datasheet - ROHM

BD6726FU Multifunction Single-phase Full-wave Fan Motor Driver

BD6726FU is a pre-driver that controls the motor drive part composed of the power transistors. Moreover, because the speed feedback function is installed, it is the best for the motor drive with high rotational accuracy. *Package SSOP-C20 W (Typ.) x D (Typ.) x H (Max.) 5.00mm x 6.40mm x 1.35mm.

BD6726FU Features

* Pre-driver for external power transistors

* Speed feedback controllable by PWM input

* PWM soft switching

* Soft start

* Quick start

* Current limit

* Lock protection and automatic restart

* Rotation speed pulse signal (FG) output

BD6726-FUROHM.pdf

This datasheet PDF includes multiple part numbers: BD6726FU, BD6726. Please refer to the document for exact specifications by model.

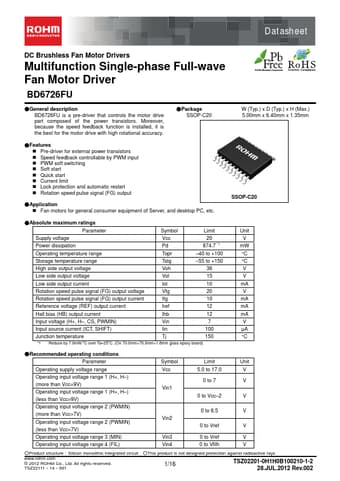

BD6726FU Datasheet Preview Page 2 BD6726FU Datasheet Preview Page 3

Datasheet Details

Part number:

BD6726FU, BD6726

Manufacturer:

ROHM ↗

File Size:

554.34 KB

Description:

Multifunction single-phase full-wave fan motor driver.

Note:

This datasheet PDF includes multiple part numbers: BD6726FU, BD6726.
Please refer to the document for exact specifications by model.
