BD67929EFV - 3-phase Brushless Motor Driver

BD67929EFV Description

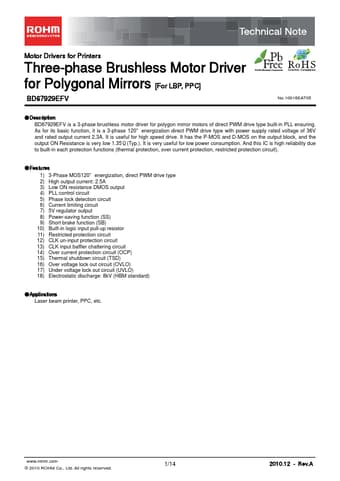

Motor Drivers for Printers Three-phase Brushless Motor Driver for Polygonal Mirrors [For LBP, PPC] BD67929EFV No.10016EAT05 *.
BD67929EFV is a 3-phase brushless motor driver for polygon mirror motors of direct PWM drive type built-in PLL ensuring.

BD67929EFV Features

* 1) 3-Phase MOS120°energization, direct PWM drive type 2) High output current: 2.5A 3) Low ON resistance DMOS output 4) PLL control circuit 5) Phase lock detection circuit 6) Current limiting circuit 7) 5V regulator output 8) Power-saving function (SS) 9) Short brake function (SB) 10) Built-in logic

BD67929EFV Applications

* Laser beam printer, PPC, etc. www. rohm. com © 2010 ROHM Co. , Ltd. All rights reserved. 1/14 2010.12 - Rev. A BD67929EFV
* Absolute maximum ratings (Ta=25℃) Parameter Symbol Ratings Unit Supply voltage VCC -0.2～+36.0 V Applied voltage of LD, FG terminal VLD, FG -0.2～+6.5 V Applied vol
