BD670, COMPLEMENTARY SILICON POWER DARLINGTON TRANSISTORS

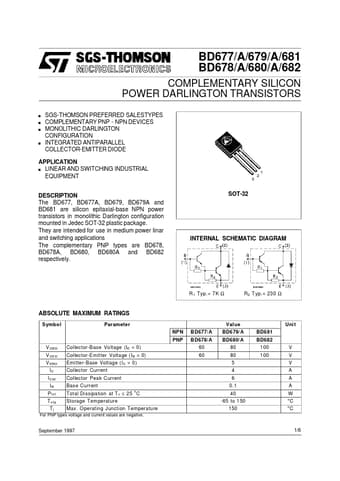

BD677/A/679/A/681 BD678/A/680/A/682 COMPLEMENTARY SILICON POWER DARLINGTON TRANSISTORS s s s s SGS-THOMSON PREFERRED SALESTYPES COMPLEMENTARY PNP - .
The BD677, BD677A, BD679, BD679A and BD681 are silicon epitaxial-base NPN power transistors in monolithic Darlington configuration mounted in Jedec SO.

datasheet Preview Page 1 from Datasheet4u.com

BD670_STMicroelectronics.pdf

BD670 Datasheet Preview — Preview of BD670 PDF

Datasheet Details

Part number:

BD670

Manufacturer:

STMicroelectronics ↗

File Size:

87.97 KB

Description:

COMPLEMENTARY SILICON POWER DARLINGTON TRANSISTORS

Applications

* The complementary PNP types are BD678, BD678A, BD680, BD680A and BD682 respectively. SOT-32 3 2 1 INTERNAL SCHEMATIC DIAGRAM R 1 Typ. = 7K Ω R 2 T yp. = 230 Ω ABSOLUTE MAXIMUM RATINGS Symbol Parameter NPN PNP V CBO V CEO V EBO IC I CM IB P t ot T stg Tj Collector-Base Voltage (IE = 0) Collector
