BD6718FV, BD6709FS DC Brushless Fan Motor Drivers

BD6718FV Description

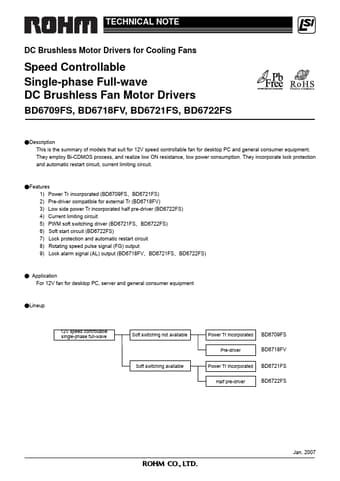

TECHNICAL NOTE DC Brushless Motor Drivers for Cooling Fans Speed Controllable Single-phase Full-wave DC Brushless Fan Motor Drivers BD6709FS, BD6718FV.
This is the summary of models that suit for 12V speed controllable fan for desktop PC and general consumer equipment.

BD6718FV Features

* 1) Power Tr incorporated (BD6709FS、BD6721FS) 2) Pre-driver compatible for external Tr (BD6718FV) 3) Low side power Tr incorporated half pre-driver (BD6722FS) 4) Current limiting circuit 5) PWM soft switching driver (BD6721FS、BD6722FS) 6) Soft start circuit (BD6722FS) 7) Lock protection and automatic

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BD6718FV, BD6709FS. Please refer to the document for exact specifications by model.
