BD67173NUX - Three-Phase Full-Wave Fan Motor Driver

BD67173NUX Description

Datasheet DC Brushless Fan Motor Drivers Three-Phase Full-Wave Fan Motor Driver BD67173NUX General .
BD67173NUX is a three-phase sensorless fan motor driver used to cool off notebook PCs.

BD67173NUX Features

* Speed controllable by PWM input signal
* Sensorless drive
* Soft switched drive Quick start
* Power save function
* Internal RNF resistance

BD67173NUX Applications

* Small fan motor for notebook PCs etc. Typical Application Circuit(s) SIG ＋ 1uF~4.7uF VCC 10kohm FG CTOM VCC VCC 10kohm U FTR 1pin M ― PWM TOSC GND V Ｗ 2200pF PWM Product structure : Silicon monolithic integrated circuit . www. rohm. com © 2015 ROHM Co. , Ltd. All rights reserved. TSZ2

📥 Download Datasheet

Preview of BD67173NUX PDF

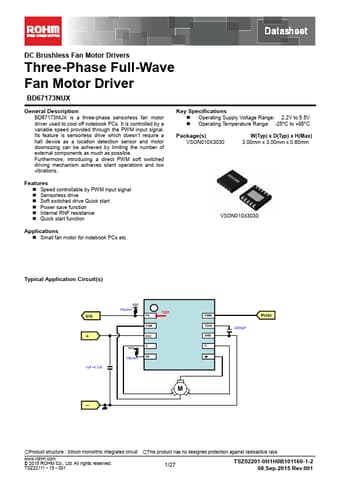

datasheet Preview Page 2 datasheet Preview Page 3
