BD6757KN - 7ch System Lens Drivers

Product Overview

Rohm

Part number	BD6757KN
Manufacturer	ROHM
File Size	472.48 KB
Description	7ch System Lens Drivers
Datasheet	BD6757KN Datasheet
Note	This datasheet PDF includes multiple part numbers: BD6757KN, BD6889GU. Please refer to the document for exact specifications by model.

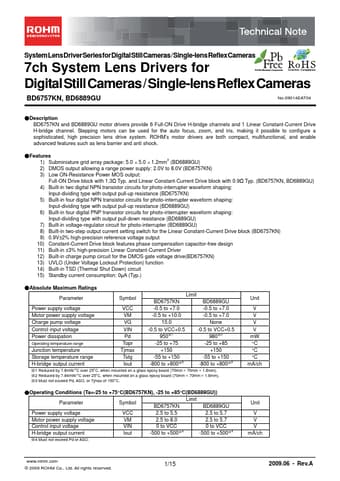

Additional preview pages of the BD6757KN datasheet.

BD6757KN and BD6889GU motor drivers provide 6 Full-ON Drive H-bridge channels and 1 Linear Constant-Current Drive H-bridge channel.

) Subminiature grid array package: 5.0  5.0  1.2mm3 (BD6889GU) 2) DMOS output allowing a range power supply: 2.0V to 8.0V (BD6757KN) 3) Low ON-Resistance Power MOS output: Full-ON Drive block with 1.3Ω Typ. and Linear Constant-Current Drive block with 0.9Ω Typ. (BD6757KN, BD6889GU) 4) Built-in two digital NPN transistor circuits for photo-interrupter waveform shaping: Input-dividing type with output pull-up resistance (BD6757KN) 5) Built-in four digital NPN transistor circuits for photo-interr.
