PHPM6B7E60D3 - Hybrid Power Module

📥 Download Datasheet

Datasheet preview – PHPM6B7E60D3

Datasheet Details

Part number PHPM6B7E60D3
Manufacturer Motorola Inc
File Size 129.15 KB
Description Hybrid Power Module
Datasheet download datasheet PHPM6B7E60D3 Datasheet
Additional preview pages of the PHPM6B7E60D3 datasheet.

📁 Similar Datasheet

  • PHP101NQ03LT - TrenchMOS logic level FET (NXP)
  • PHP101NQ04T - N-channel TrenchMOS standard level FET (NXP Semiconductors)
  • PHP1025 - P-channel enhancement mode MOS transistor (NXP)
  • PHP1035 - P-channel enhancement mode MOS transistor (NXP)
  • PHP108NQ03LT - TrenchMOS logic level FET (NXP)
  • PHP109 - P-channel enhancement mode MOS transistor (NXP)
  • PHP10N10E - PowerMOS transistor (NXP)
  • PHP10N40 - PowerMOS transistor (NXP)
  • PHP10N40E - PowerMOS transistors Avalanche energy rated (NXP)
  • PHP10N60E - PowerMOS transistors Avalanche energy rated (NXP)
Other Datasheets by Motorola Inc

Full PDF Text Transcription

Click to expand full text

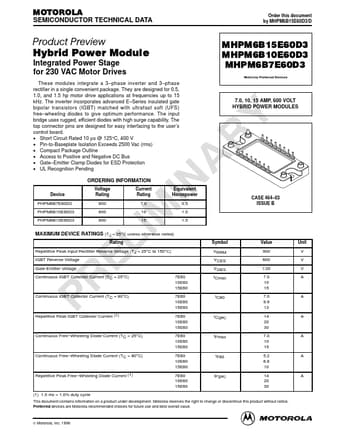

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by MHPM6B15E60D3/D Product Preview Hybrid Power Module Integrated Power Stage for 230 VAC Motor Drives These modules integrate a 3–phase inverter and 3–phase rectifier in a single convenient package. They are designed for 0.5, 1.0, and 1.5 hp motor drive applications at frequencies up to 15 kHz. The inverter incorporates advanced E–Series insulated gate bipolar transistors (IGBT) matched with ultrafast soft (UFS) free–wheeling diodes to give optimum performance. The input bridge uses rugged, efficient diodes with high surge capability. The top connector pins are designed for easy interfacing to the user’s control board.
