SN54LS160A - BCD DECADE COUNTERS/ 4-BIT BINARY COUNTERS

SN54LS160A Description

BCD DECADE COUNTERS/ 4-BIT BINARY COUNTERS The LS160A / 161A / 162A / 163A are high-speed 4-bit synchronous counters.They are edge-triggered, synchro.
The LS160A / 161A / 162A / 163A are 4-bit synchronous counters with a synchronous Parallel Enable (Load) feature.

SN54LS160A Features

* th th trec
* CEP, CET or DATA Parameter Clock Pulse Width Low MR or SR Pulse Width Setup Time, other
* Setup Time PE or SR Hold Time, data Hold Time, other Recovery Time MR to CP Min 25 20 20 25 3 0 15 Typ Max Unit ns ns ns ns ns ns ns Test Conditions VCC = 5.0 V DEFINITION OF TERMS S

SN54LS160A Applications

* The LS160A and LS162A count modulo 10 (BCD). The LS161A and LS163A count modulo 16 (binary. ) The LS160A and LS161A have an asynchronous Master Reset (Clear) input that overrides, and is independent of, the clock and all other control inputs. The LS162A and LS163A have a Synchronous Reset (Clear) in

📥 Download Datasheet

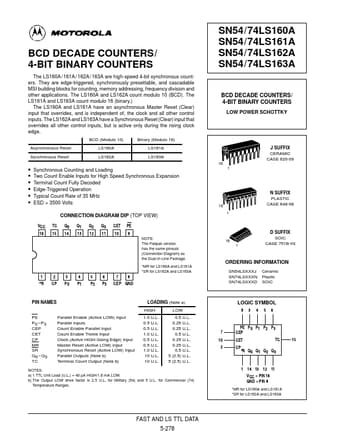

Preview of SN54LS160A PDF
