SN54LS165A - Parallel-Load 8-Bit Shift Registers

This page provides the datasheet information for the SN54LS165A, a member of the SN54165 Parallel-Load 8-Bit Shift Registers family.

Datasheet Summary

Description

The ’165 and ’LS165A are 8-bit serial shift registers that shift the data in the direction of QA toward QH when clocked.

Parallel-in access to each stage is made available by eight individual, direct data inputs that are enabled by a low level at the shift/load (SH/LD) input.

📥 Download Datasheet

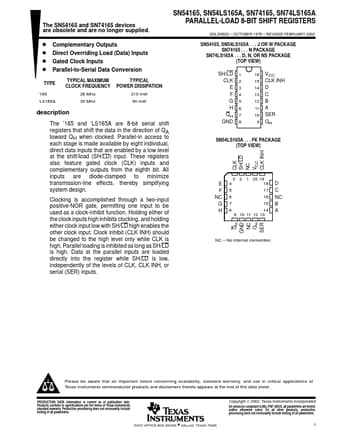

Datasheet preview – SN54LS165A

Datasheet Details

Part number SN54LS165A
Manufacturer Texas Instruments
File Size 1.11 MB
Description Parallel-Load 8-Bit Shift Registers
Datasheet download datasheet SN54LS165A Datasheet
Additional preview pages of the SN54LS165A datasheet.

📁 Similar Datasheet

  • SN54LS165 - 8-BIT PARALLEL-TO-SERIAL SHIFT REGISTER (Motorola Inc)
  • SN54LS160A - BCD DECADE COUNTERS/ 4-BIT BINARY COUNTERS (Motorola Inc)
  • SN54LS161A - BCD DECADE COUNTERS / 4-BIT BINARY COUNTERS (Motorola)
  • SN54LS162A - BCD DECADE COUNTERS / 4-BIT BINARY COUNTERS (Motorola)
  • SN54LS163A - BCD DECADE COUNTERS / 4-BIT BINARY COUNTERS (Motorola)
  • SN54LS164 - SERIAL-IN PARALLEL-OUT SHIFT REGISTER (Motorola Inc)
  • SN54LS166 - 8-BIT SHIFT REGISTERS (Motorola Inc)
  • SN54LS168 - BCD DECADE/MODULO 16 BINARY SYNCHRONOUS BI-DIRECTIONAL COUNTERS (Motorola Inc)
  • SN54LS169 - BCD DECADE/MODULO 16 BINARY SYNCHRONOUS BI-DIRECTIONAL COUNTERS (Motorola)
  • SN54LS10 - TRIPLE 3-INPUT NAND GATE (Motorola Inc)
Other Datasheets by Texas Instruments

Full PDF Text Transcription

Click to expand full text
The SN54165 and SN74165 devices are obsolete and are no longer supplied. SN54165, SN54LS165A, SN74165, SN74LS165A PARALLEL-LOAD 8-BIT SHIFT REGISTERS SDLS062D – OCTOBER 1976 – REVISED FEBRUARY 2002 D Complementary Outputs D Direct Overriding Load (Data) Inputs D Gated Clock Inputs D Parallel-to-Serial Data Conversion TYPE ’165 ’LS165A TYPICAL MAXIMUM CLOCK FREQUENCY 26 MHz 35 MHz TYPICAL POWER DISSIPATION 210 mW 90 mW description The ’165 and ’LS165A are 8-bit serial shift registers that shift the data in the direction of QA toward QH when clocked. Parallel-in access to each stage is made available by eight individual, direct data inputs that are enabled by a low level at the shift/load (SH/LD) input.
