2N2102 Datasheet - Motorola

2N2102 AMPLIFIER TRANSISTOR

MAXIMUM RATINGS Rating Collector-Emitter Voltage Collector-Emitter Voltage, Rgg « 10 Ohms Collector-Base Voltage Emitter-Base Voltage Collector Current Continuous @Total Device Dissipation TA = 25°C Derate above 25°C Total Device Dissipation (a Tc = 25°C Derate above 25°C Operating and Storage Junction Temperature Range Symbol VCEO VCER VCBO VEBO 'C PD PD T J, Tst g Value 65 80 120 7.0 1.0 1.0 5.71 5.0 28.6 -65 to + 200 Unit Vdc Vdc Vdc Vdc Adc Watt mWfC Watts mW/°C °C 2N2102 CAS.

2N2102 Datasheet (37.27 KB)

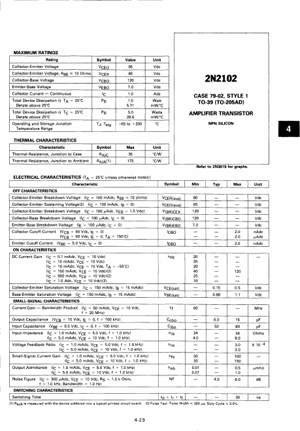

2N2102 Datasheet Preview — Preview of 2N2102 PDF

Datasheet Details

Part number:

2N2102

Manufacturer:

Motorola

File Size:

37.27 KB

Description:

Amplifier transistor.
