2N2137A, 2N2137 Datasheet - Motorola

2N2137A PNP germanium industrial power transistors

2N2137 thru 2N2146 (GERMANIUM) 2N2137A thru 2N2146A PNP germanium industrial power transistors for driver applications in high reliability equipment. CASE 11 (TO-3) CASE 4-04 (TO-41) For units with solder lugs attached, specify devices MP2137,A etc. (TO-41 package) MAXIMUM RATINGS Apply also to standard, non-A series Rating 2N2137A 2N2138A Symbol 2N2142A 2N2143A 2N2139A 2N2l44A 2N2140A 2N2145A 2N2141A 2N2146A Unit Collector-Base Voltage VCB 30 Collector-Emitter Voltage VCES 30 Co.

2N2137-Motorola.pdf

This datasheet PDF includes multiple part numbers: 2N2137A, 2N2137. Please refer to the document for exact specifications by model.

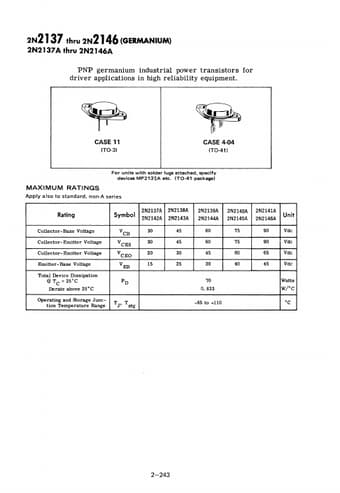

2N2137A Datasheet Preview Page 2 2N2137A Datasheet Preview Page 3

Datasheet Details

Part number:

2N2137A, 2N2137

Manufacturer:

Motorola

File Size:

275.62 KB

Description:

Pnp germanium industrial power transistors.

Note:

This datasheet PDF includes multiple part numbers: 2N2137A, 2N2137.
Please refer to the document for exact specifications by model.
