2N3713 - NPN silicon power transistors

2N3713 Description

2N3713 thru 2N3716 (SILICON) CASE 11 (TO-3) NPN silicon power transistors for medium-speed switching and amplifier applications.Complement to PNP t.

2N3713 Applications

* Complement to PNP types 2N3789 thru 2N3792. MAXIMUM RATINGS Rating C/')llector-Base Voltage Collector-Emitter Voltage f
* - Emitter-Base Voltage Collector Current Base Current Power Dissipation Thermal Resistance Symbol VCB VCEO VEB Ie IB PD eJC 2N3713 2N3715 80 60 7.0 10 4.0 150 l. l7 2N3

📥 Download Datasheet

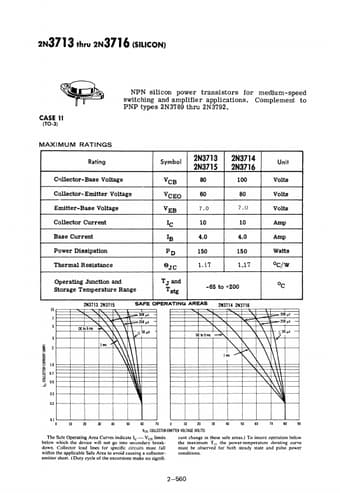

Preview of 2N3713 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2N3713
Manufacturer
Motorola
File Size
311.33 KB
Datasheet
2N3713-Motorola.pdf
Description
NPN silicon power transistors
