2N404 - PNP Transistor

2N404 Description

2N404 (GERMANIUM) 2N404A PNP GERMANIUM SWITCHING TRANSISTORS ..designed for medium-speed saturated switching applications.* Low Collector-E.

2N404 Applications

* Low Collector-Emitter Saturation Voltage VCE(sat) = 0.2 Vdc (Max) @ IC = 24 mAdc
* High Emitter-Base Breakdown VoltageBVEBO = 12 Vdc (Min) @ IE = 20 pAdc - 2N404 = 25 Vdc (Min) @ IE =20 pAdc - 2N404A PNP GERMANIUM SWITCHING TRANSISTORS
* MAXIMUM RATINGS Rati"g Collector-Emitt

📥 Download Datasheet

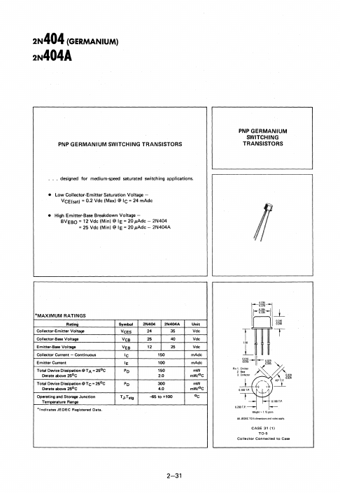

Preview of 2N404 PDF
