2N404A - PNP Transistor

This page provides the datasheet information for the 2N404A, a member of the 2N404 PNP Transistor family.

Motorola

Datasheet Details

Part number	2N404A
Manufacturer	Motorola
File Size	124.79 KB
Description	PNP Transistor
Datasheet	2N404A Datasheet
Additional preview pages of the 2N404A datasheet.

📁 Similar Datasheet

2N404 - Transistor (Advanced)
2N404 - PNP TRANSISTOR (Central Semiconductor)
2N404 - Germanium PNP Transistor (NTE)
2N4044 - Dual NPN Amplifier (Solid State)
2N4044 - Dual NPN Transistor (New Jersey Semi-Conductor)
2N4045 - Dual NPN Amplifier (Solid State)
2N4045 - Dual NPN Transistor (New Jersey Semi-Conductor)
2N4046 - Small Signal Transistors (Central Semiconductor Corp)
2N4047 - Small Signal Transistors (Central Semiconductor Corp)
2N4048 - (2N404x) Germanium Power Transistors (GPD Optoelectronic Devices)

Other Datasheets by Motorola

2N404 - PNP Transistor
2N4048 - PNP germanium power transistors
2N4049 - PNP germanium power transistors
2N4012 - NPN silicon annular transistor
2N4015 - DUAL AMPLIFIER TRANSISTOR
2N4016 - DUAL AMPLIFIER TRANSISTOR
2N4026 - GENERAL PURPOSE TRANSISTOR
2N4027 - GENERAL PURPOSE TRANSISTOR

Full PDF Text Transcription

Click to expand full text

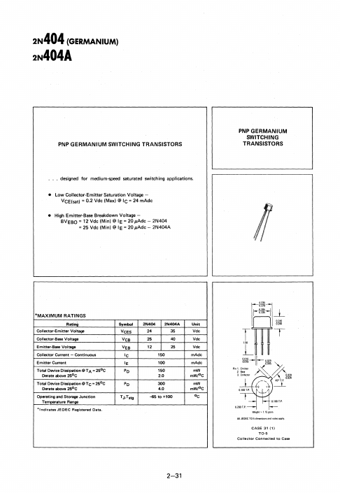

2N404 (GERMANIUM) 2N404A PNP GERMANIUM SWITCHING TRANSISTORS .. designed for medium-speed saturated switching applications. • Low Collector-Emitter Saturation Voltage VCE(sat) = 0.2 Vdc (Max) @ IC = 24 mAdc • High Emitter-Base Breakdown VoltageBVEBO = 12 Vdc (Min) @ IE = 20 pAdc - 2N404 = 25 Vdc (Min) @ IE =20 pAdc - 2N404A PNP GERMANIUM SWITCHING TRANSISTORS *MAXIMUM RATINGS Rati"g Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Collector Currant - Continuous Emitter Current Total Device Dissipation @TA ~ 25°C Darate above 250 C Total Device Dissipation @TC • 25°C Derate above 250 C Operating and Storage Junction Tamporatura Range ·Indlcates JEDEC Registered Data. Symbol VCES VCB VEB IC IE Po Po TJ,Tstg 2N404 24 2N404A 35 25 40 12 25 150 100 150 2.
