2N4049 - PNP germanium power transistors

This page provides the datasheet information for the 2N4049, a member of the 2N4048 PNP germanium power transistors family.

📥 Download Datasheet

Datasheet preview – 2N4049

Datasheet Details

Part number 2N4049
Manufacturer Motorola
File Size 331.05 KB
Description PNP germanium power transistors
Datasheet download datasheet 2N4049 Datasheet
Additional preview pages of the 2N4049 datasheet.

📁 Similar Datasheet

  • 2N404 - Transistor (Advanced)
  • 2N404 - PNP TRANSISTOR (Central Semiconductor)
  • 2N404 - Germanium PNP Transistor (NTE)
  • 2N4044 - Dual NPN Amplifier (Solid State)
  • 2N4044 - Dual NPN Transistor (New Jersey Semi-Conductor)
  • 2N4045 - Dual NPN Amplifier (Solid State)
  • 2N4045 - Dual NPN Transistor (New Jersey Semi-Conductor)
  • 2N4046 - Small Signal Transistors (Central Semiconductor Corp)
  • 2N4047 - Small Signal Transistors (Central Semiconductor Corp)
  • 2N4048 - (2N404x) Germanium Power Transistors (GPD Optoelectronic Devices)
Other Datasheets by Motorola
  • 2N404 - PNP Transistor
  • 2N4048 - PNP germanium power transistors
  • 2N404A - PNP Transistor
  • 2N4012 - NPN silicon annular transistor
  • 2N4015 - DUAL AMPLIFIER TRANSISTOR
  • 2N4016 - DUAL AMPLIFIER TRANSISTOR
  • 2N4026 - GENERAL PURPOSE TRANSISTOR
  • 2N4027 - GENERAL PURPOSE TRANSISTOR

Full PDF Text Transcription

Click to expand full text

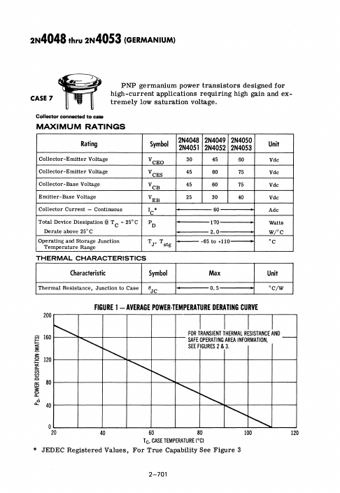

2N4048 thru 2N4053 (GERMANIUM) fif CASE7 PNP germanium power transistors designed for high-current applications requiring high gain and extremely low saturation voltage. Collector connected to case MAXIMUM RATINGS Rating Collector-Emitter Voltage Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Collector Current - Continuous Total Device Dissipation @ T C =25° C Derate above 25°C Operating and Storage Junction Temperature Range Symbol 2N4048 2N4049 2N4050 2N4051 2N4052 2N4053 VCEO 30 45 60 VCES 45 60 75 VCB 45 60 75 VEB 25 30 40 IC* 60 Po • 170 2.0 TJ , Tstg • -65 to +110 THERMAL CHARACTERISTICS Unit Vdc Vdc Vdc Vdc Adc Watts W!"C °c Characteristic Symbol Max Unit Thermal ReSistance, Junction to Case 8JC • 0.
