2N4053, 2N4048, PNP germanium power transistors

2N4048 thru 2N4053 (GERMANIUM) fif CASE7 PNP germanium power transistors designed for high-current applications requiring high gain and extremely lo.

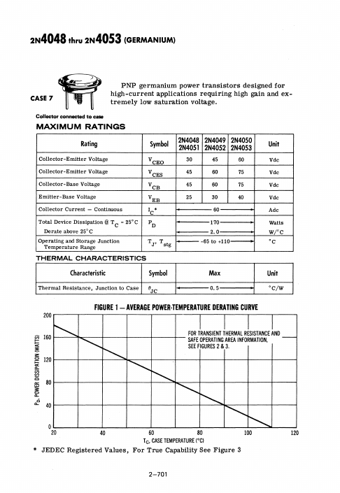

datasheet Preview Page 1 from Datasheet4u.com

2N4048-Motorola.pdf

2N4053 Datasheet Preview — This datasheet PDF includes multiple part numbers: 2N4053, 2N4048. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

2N4053, 2N4048

Manufacturer:

Motorola

File Size:

331.05 KB

Description:

PNP germanium power transistors

Note:

This datasheet PDF includes multiple part numbers: 2N4053, 2N4048.
Please refer to the document for exact specifications by model.

Applications

* requiring high gain and extremely low saturation voltage. Collector connected to case MAXIMUM RATINGS Rating Collector-Emitter Voltage Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Collector Current - Continuous Total Device Dissipation @ T C =25° C Derate above 25°C Operat
