56F802 56F802 16-bit Hybrid Controller

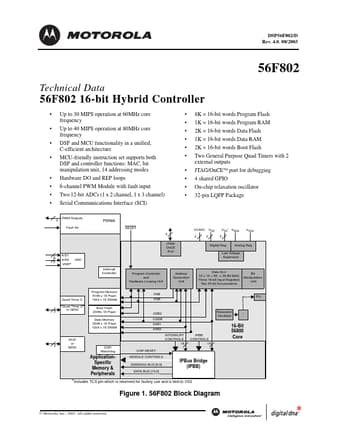

DSP56F802/D Rev. 4.0, 08/2003 56F802 Technical Data 56F802 16-bit Hybrid Controller Up to 30 MIPS operation at 60MHz core frequency Up to 40 MIPS operation at 80MHz core frequency DSP and MCU functionality in a unified, C-efficient architecture MCU-friendly instruction set supports both DSP and controller functions: MAC, bit manipulation unit, 14 addressing modes Hardware DO and REP loops 6-channel PWM Module with fault input
