BCX20 Transistor

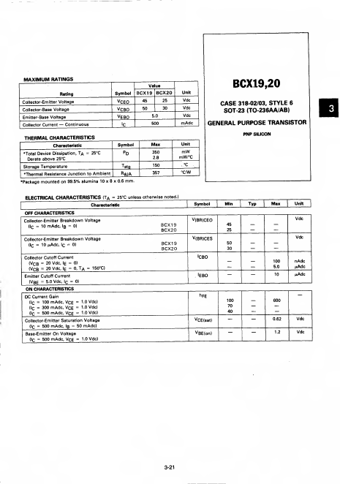

MAXIMUM RATINGS Rating Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Collector Current Continuous Symbol VCEO VCBO VEBO 'C Value BCX19 BCX20 45 25 50 30 5.0 500 Unit Vdc Vdc Vdc mAdc THERMAL CHARACTERISTICS Characteristic Symbol Total Device ADissipation, T = 25°C Derate above 25°C PD Storage Temperature Tstg Thermal Resistance Junction to Ambient R flUA Package mounted on 99.5% alumina 10 x 8 x 0.6 mm. Max 350 2.8 150 357 Unit mW.
