BCX17-Q - PNP general purpose transistor

Datasheet Summary

Description

PNP general-purpose transistor in a small SOT23 Surface-Mounted Device (SMD) plastic package.

2.

Features

  • High current (max. 500 mA).
  • Low voltage (max. 45 V).
  • Qualified according to AEC-Q101 and recommended for use in automotive.

📥 Download Datasheet

Datasheet preview – BCX17-Q

Datasheet Details

Part number BCX17-Q
Manufacturer nexperia
File Size 222.37 KB
Description PNP general purpose transistor
Datasheet download datasheet BCX17-Q Datasheet

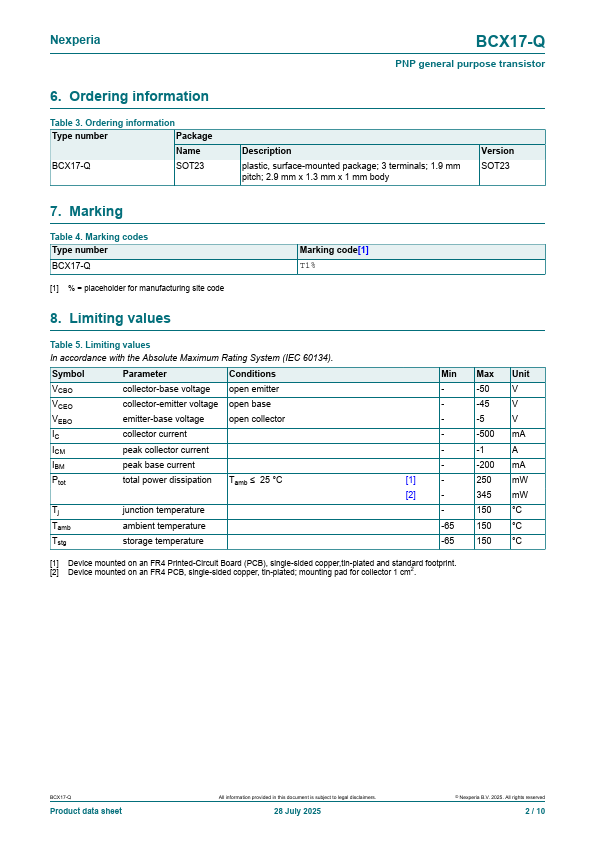

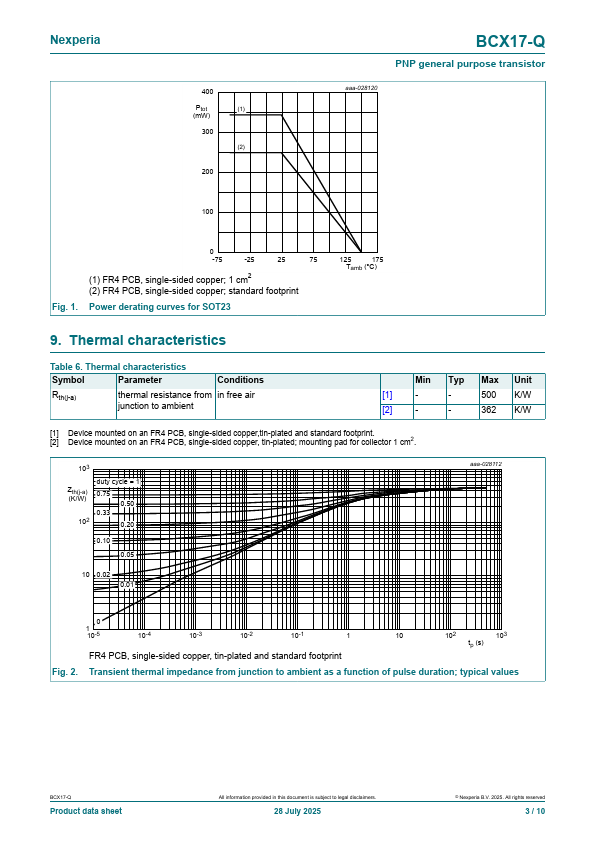

Additional preview pages of the BCX17-Q datasheet.

📁 Similar Datasheet

  • BCX17 - PNP general purpose transistors (NXP)
  • BCX17 - Transistor (Motorola)
  • BCX17 - Transistor (CDIL)
  • BCX17 - PNP Transistor (STMicroelectronics)
  • BCX17 - PNP Transistor (Kexin)
  • BCX17 - PNP Transistor (GME)
  • BCX17 - PNP Transistor (ROHM)
  • BCX17 - PNP General Purpose Amplifier (Fairchild Semiconductor)
  • BCX17CSM - GENERAL PURPOSE PNP TRANSISTOR (Seme LAB)
  • BCX17LT1 - General Purpose Transistors (Motorola Inc)
Other Datasheets by nexperia
  • BCX18-Q - PNP general purpose transistor
  • BCX51 - 1A PNP medium power transistors
  • BCX51-10T - 1A PNP transistors
  • BCX51-16T - 1A PNP transistors
  • BCX51T - 1A PNP transistors
  • BCX52 - 1A PNP medium power transistors
  • BCX53 - 1A PNP medium power transistors
  • BCX54 - 1A NPN medium power transistors

Full PDF Text Transcription

Click to expand full text

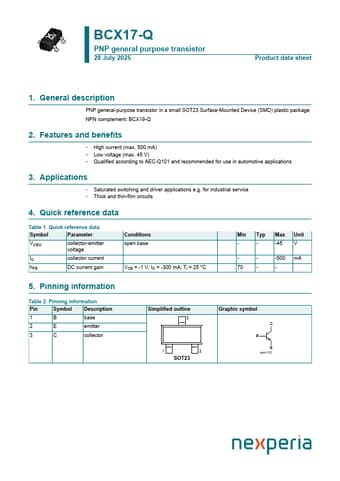

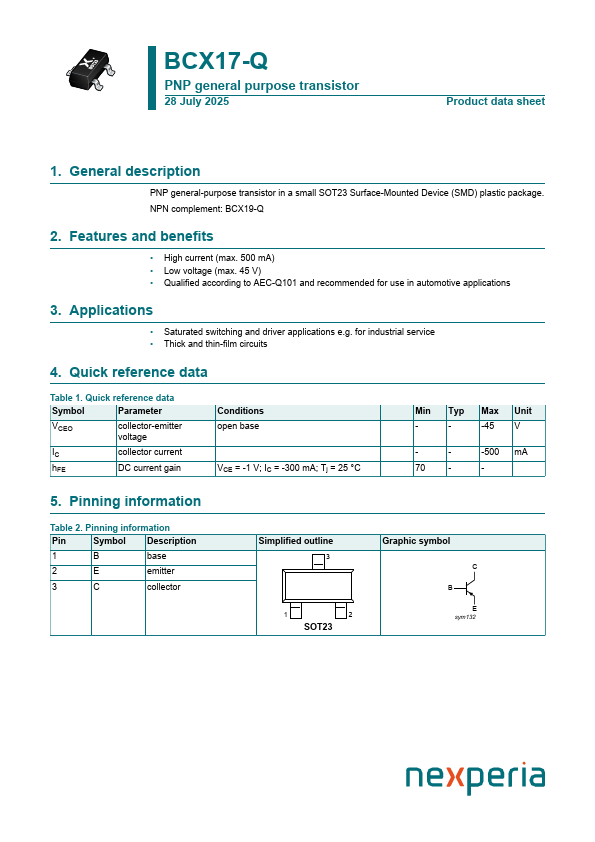

BCX17-Q PNP general purpose transistor 28 July 2025 Product data sheet 1. General description PNP general-purpose transistor in a small SOT23 Surface-Mounted Device (SMD) plastic package. NPN complement: BCX19-Q 2. Features and benefits • High current (max. 500 mA) • Low voltage (max. 45 V) • Qualified according to AEC-Q101 and recommended for use in automotive applications 3. Applications • Saturated switching and driver applications e.g. for industrial service • Thick and thin-film circuits 4. Quick reference data Table 1. Quick reference data Symbol Parameter VCEO collector-emitter voltage IC collector current hFE DC current gain Conditions open base VCE = -1 V; IC = -300 mA; Tj = 25 °C Min Typ Max Unit - - -45 V - - 70 - -500 mA - 5.
