BCX18-Q - PNP general purpose transistor

BCX18-Q Description

BCX18-Q PNP general purpose transistor 28 July 2025 Product data sheet 1.General .
PNP general-purpose transistor in a small SOT23 Surface-Mounted Device (SMD) plastic package.

BCX18-Q Features

* High current (max. 500 mA)
* Low voltage (max. 25 V)

BCX18-Q Applications

* 3. Applications
* Saturated switching and driver applications e. g. for industrial service
* Thick and thin-film circuits 4. Quick reference data Table 1. Quick reference data Symbol Parameter VCEO collector-emitter voltage IC collector current hFE DC current gain Conditio

📥 Download Datasheet

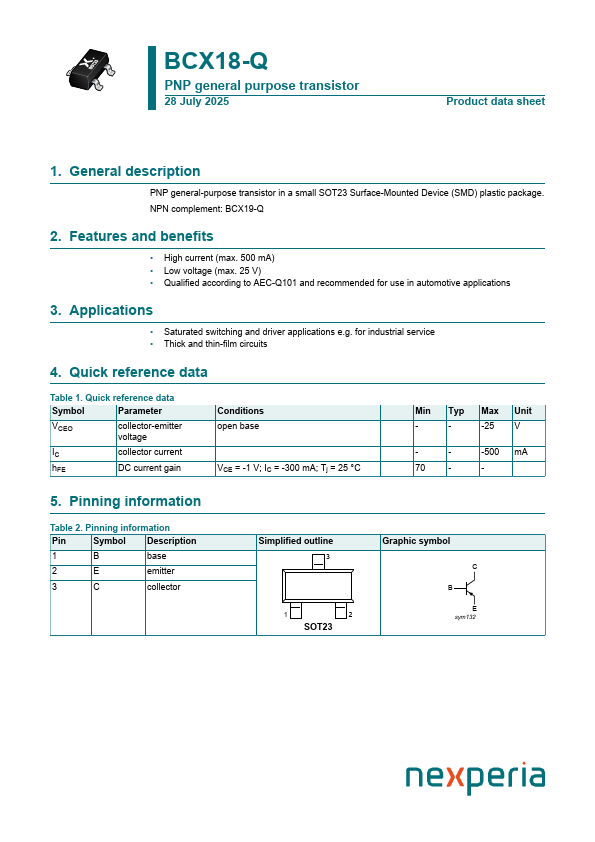

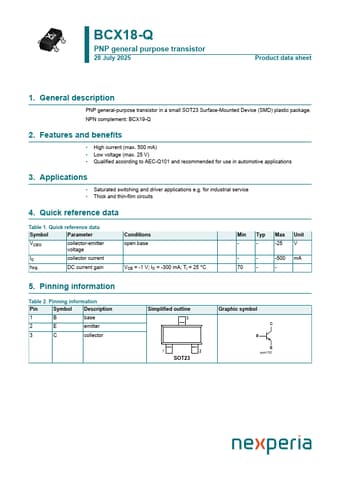

Preview of BCX18-Q PDF

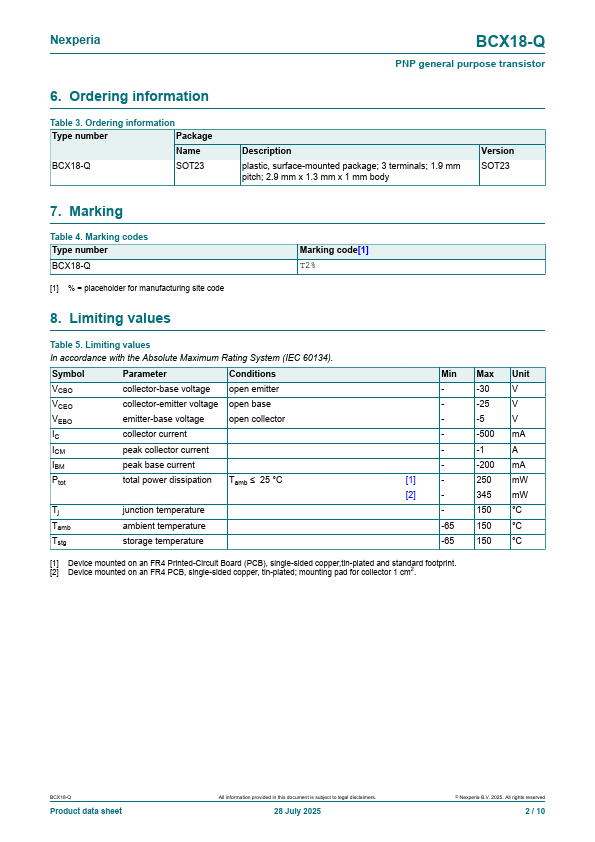

datasheet Preview Page 2 datasheet Preview Page 3
