BCX17CSM - GENERAL PURPOSE PNP TRANSISTOR

Datasheet Summary

Features

  • A 1.40 (0.055) max. 2.54 ± 0.13 (0.10 ± 0.005) 3 2 1 1.91 ± 0.10 (0.075 ± 0.004) 3.05 ± 0.13 (0.12 ± 0.005) 0.76 ± 0.15 (0.03 ± 0.006) 0.31 rad. (0.012).

📥 Download Datasheet

Datasheet preview – BCX17CSM

Datasheet Details

Part number BCX17CSM
Manufacturer Seme LAB
File Size 16.88 KB
Description GENERAL PURPOSE PNP TRANSISTOR
Datasheet download datasheet BCX17CSM Datasheet
Additional preview pages of the BCX17CSM datasheet.

📁 Similar Datasheet

  • BCX17 - PNP general purpose transistors (NXP)
  • BCX17 - Transistor (Motorola)
  • BCX17 - Transistor (CDIL)
  • BCX17 - PNP Transistor (STMicroelectronics)
  • BCX17 - PNP Transistor (Kexin)
  • BCX17 - PNP Transistor (GME)
  • BCX17 - PNP Transistor (ROHM)
  • BCX17 - PNP General Purpose Amplifier (Fairchild Semiconductor)
  • BCX17-Q - PNP general purpose transistor (nexperia)
  • BCX17LT1 - General Purpose Transistors (Motorola Inc)
Other Datasheets by Seme LAB

Full PDF Text Transcription

Click to expand full text

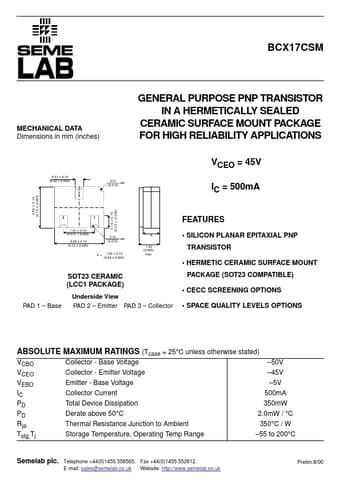

BCX17CSM MECHANICAL DATA Dimensions in mm (inches) GENERAL PURPOSE PNP TRANSISTOR IN A HERMETICALLY SEALED CERAMIC SURFACE MOUNT PACKAGE FOR HIGH RELIABILITY APPLICATIONS VCEO = 45V 0.51 ± 0.10 (0.02 ± 0.004) 0.31 rad. (0.012) IC = 500mA FEATURES A 1.40 (0.055) max. 2.54 ± 0.13 (0.10 ± 0.005) 3 2 1 1.91 ± 0.10 (0.075 ± 0.004) 3.05 ± 0.13 (0.12 ± 0.005) 0.76 ± 0.15 (0.03 ± 0.006) 0.31 rad. (0.012) • SILICON PLANAR EPITAXIAL PNP TRANSISTOR • HERMETIC CERAMIC SURFACE MOUNT A = 1.02 ± 0.10 (0.04 ± 0.
