BCX49 HIGH CURRENT TRANSISTORS

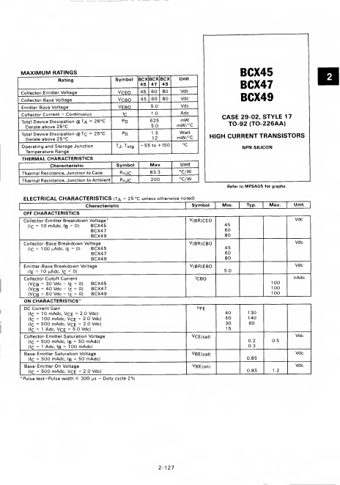

MAXIMUM RATINGS Rating Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Collector Current - Continuous @Total Device Dissipation Ta = 25°C Derate above 25°C Total Device Dissipation @Tc = 25°C Derate above 25°C Operating and Storage Junction Temperature Range THERMAL CHARACTERISTICS Characteristic Thermal Resistance, Junction to Case Thermal Resistance, Junction to Ambient Symbol VCEO VCBO VEBO ic PD pd Tj, T stg Symbol R«JC R^jc BCX BCX BCX 45 47 49 45 60 80 45 60 80 5.0 .

BCX45-Motorola.pdf

BCX49 Datasheet Preview — This datasheet PDF includes multiple part numbers: BCX49, BCX45. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

BCX49, BCX45

Manufacturer:

Motorola

File Size:

62.43 KB

Description:

High current transistors.

Note:

This datasheet PDF includes multiple part numbers: BCX49, BCX45.
Please refer to the document for exact specifications by model.
