MC10211 - Dual 3-Input/3-Output NOR Gate

MC10211 Description

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Dual 3-Input/3-Output NOR Gate The MC10211 is designed to drive up to six transmission lines simul * ta.

MC10211 Applications

* where minimum clock skew is desired. MC10211 L SUFFIX CERAMIC PACKAGE CASE 620
* 10 P SUFFIX PLASTIC PACKAGE CASE 648
* 08 FN SUFFIX PLCC CASE 775
* 02 PD = 160 mW typ/pkg (No Loads) tpd = 1.5 ns typ (All Output Loaded) tr, tf = 1.5 ns typ (20%
* 80%) LOGIC DIAGRAM 2 5 6

📥 Download Datasheet

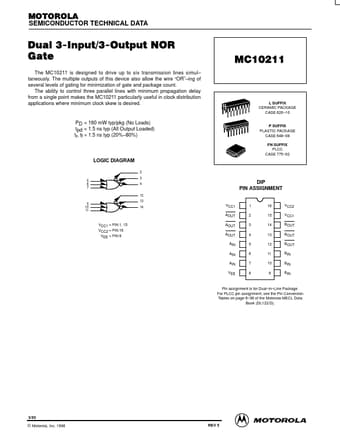

Preview of MC10211 PDF
