MC10210, Dual 3-Input / 3-Output OR Fate

MC10210 Dual 3-Input/3-Output OR Gate The MC10210 is designed to drive up to six transmission lines simul * taneously.The multiple outputs of.

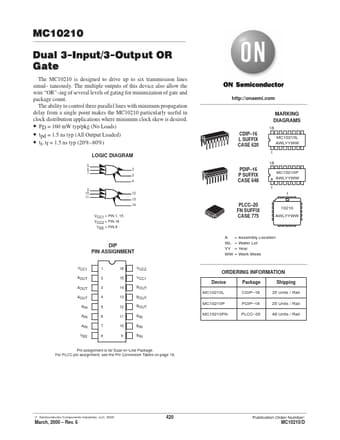

datasheet Preview Page 1 from Datasheet4u.com

MC10210-ONSemiconductor.pdf

MC10210 Datasheet Preview — Preview of MC10210 PDF

Datasheet Details

Part number:

MC10210

Manufacturer:

ON Semiconductor ↗

File Size:

45.93 KB

Description:

Dual 3-Input / 3-Output OR Fate

Applications

* where minimum clock skew is desired.
* PD = 160 mW typ/pkg (No Loads)
* tpd = 1.5 ns typ (All Output Loaded)
* tr, tf = 1.5 ns typ (20%
* 80%) LOGIC DIAGRAM 5 62 73 4 9 10 12 11 13 14 VCC1 = PIN 1, 15 VCC2 = PIN 16 VEE = PIN 8 DIP PIN ASSIGNMENT VCC1 AOUT AOUT AOUT AI
