MC1028 - Dual N-channel 20V MOSFET

MC1028 Description

MC1028-VB www.VBsemi.com MC1028-VB Datasheet Dual N-Channel 20 V (D-S) MOSFET PRODUCT SUMMARY VDS (V) RDS(on)max () 0.300 at VGS = 4.5 V 0.35.

MC1028 Features

* Trench Power MOSFET

MC1028 Applications

* Load/Power Switching for Portable Devices
* Drivers: Relays, Solenoids, Lamps, Hammers, Displays, Memories
* Battery Operated Systems
* Power Supply Converter Circuits S1 1 SC-89 6 D1 G1 2 D2 3 5 G2 4 S2 Top View ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless ot

📥 Download Datasheet

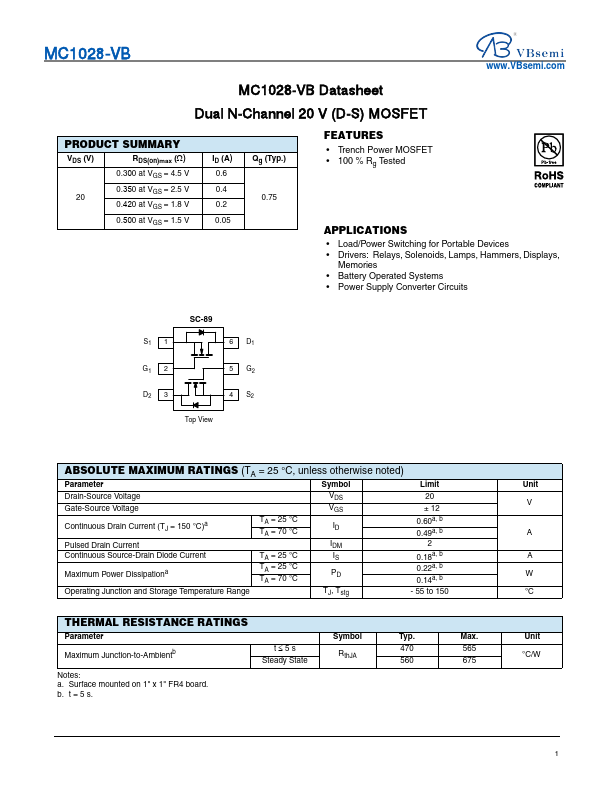

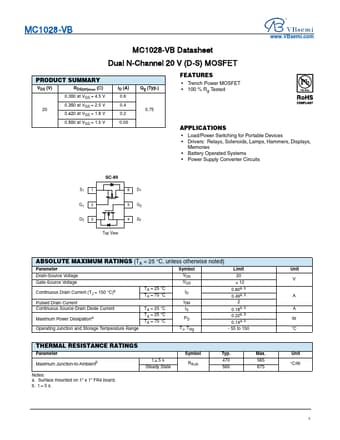

Preview of MC1028 PDF

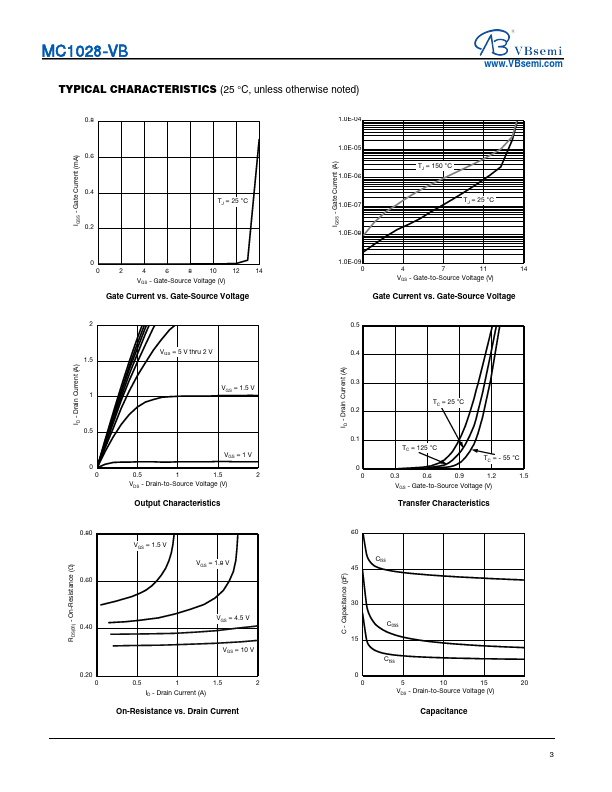

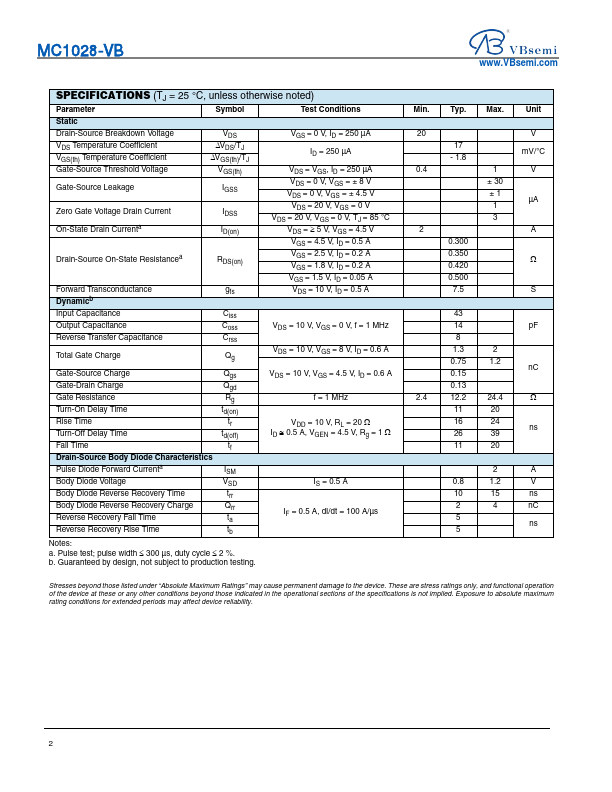

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MC1028
Manufacturer
VBsemi
File Size
265.28 KB
Datasheet
MC1028-VBsemi.pdf
Description
Dual N-channel 20V MOSFET
