MC10H603 9-Bit Latch ECL/TTL Translator

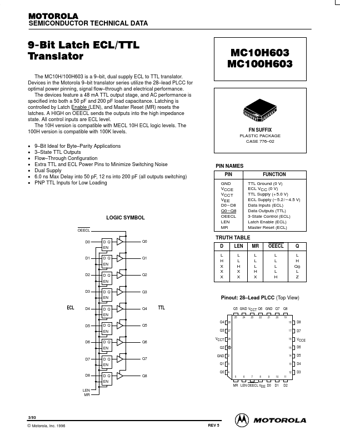

📥 Download Datasheet Datasheet Preview Page 1

Description

MOTOROLA SEMICONDUCTOR TECHNICAL DATA 9-Bit Latch ECLā/āTTL Translator The MC10H/100H603 is a 9 *bit, dual supply ECL to TTL translator.Device.

📥 Download Datasheet

Preview of MC10H603 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
MC10H603
Manufacturer
Motorola
File Size
87.37 KB
Datasheet
MC10H603-Motorola.pdf
Description
9-Bit Latch ECL/TTL Translator

Applications

* 3
* State TTL Outputs
* Flow
* Through Configuration
* Extra TTL and ECL Power Pins to Minimize Switching Noise
* Dual Supply
* 6.0 ns Max Delay into 50 pF, 12 ns into 200 pF (all outputs switching)
* PNP TTL Inputs for
