MC10H605 Datasheet - Motorola

MC10H605, Registered Hex ECL/TTL Translator

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Registered Hex ECL/TTL Translator The MC10/100H605 is a 6 *bit, registered, dual supply ECL to TTL tran.

datasheet Preview Page 1 from Datasheet4u.com

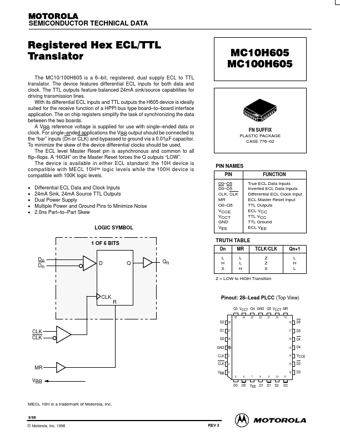

MC10H605-Motorola.pdf

MC10H605 Datasheet Preview — Preview of MC10H605 PDF

Datasheet Details

Part number:

MC10H605

Manufacturer:

Motorola

File Size:

88.06 KB

Description:

Registered Hex ECL/TTL Translator

Features

* differential ECL inputs for both data and clock. The TTL outputs feature balanced 24mA sink/source capabilities for driving transmission lines. With its differential ECL inputs and TTL outputs the H605 device is ideally suited for the receive function of a HPPI bus type board
* to
* boar

Applications

* the VBB output should be connected to the “bar” inputs (Dn or CLK) and bypassed to ground via a 0.01µF capacitor. To minimize the skew of the device differential clocks should be used. The ECL level Master Reset pin is asynchronous and common to all flip
* flops. A “HIGH” on the Master Reset f
