MC44461 Datasheet - Motorola

MC44461 - PICTURE-IN-PICTURE (PIP) CONTROLLER

Order this document by MC44461/D Advance Information MC44461 Picture-in-Picture (PIP) Controller The MC44461 Picture in Picture (PIP) controller is a member of Motorola’s low cost PIP family.

It is NTSC compatible and contains all the analog signal processing, control logic and memory necessary to provide for the overlay of a small picture from a second non synchronized source onto the main picture of a television.

All control and setup of the MC44461 is via a standard two pin

MC44461 Features

* of the MC44461 are: PICTURE

* IN

* PICTURE (PIP) CONTROLLER SEMICONDUCTOR TECHNICAL DATA

* Two NTSC CVBS Inputs Switchable Main and PIP V

MC44461_Motorola.pdf

Preview of MC44461 PDF

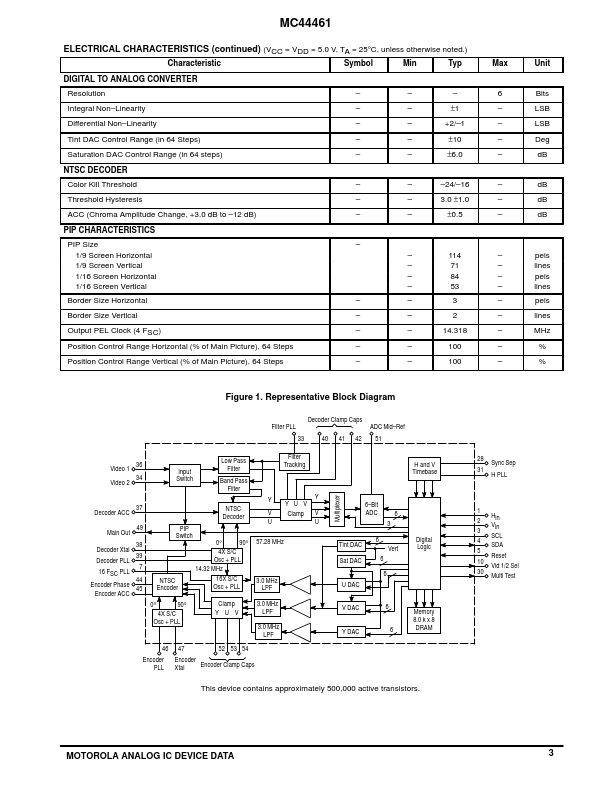

MC44461 Datasheet Preview Page 2 MC44461 Datasheet Preview Page 3

Datasheet Details

Part number:

MC44461

Manufacturer:

Motorola

File Size:

314.45 KB

Description:

Picture-in-picture (pip) controller.
