MC74LVX125 Datasheet - Motorola

MC74LVX125 LOW-VOLTAGE CMOS

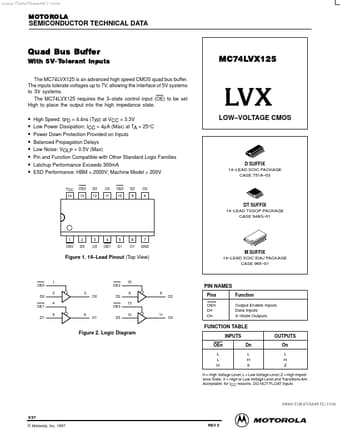

www.DataSheet4U.com MOTOROLA SEMICONDUCTOR TECHNICAL DATA Quad Bus Buffer With 5V-Tolerant Inputs The MC74LVX125 is an advanced high speed CMOS quad bus buffer. The inputs tolerate voltages up to 7V, allowing the interface of 5V systems to 3V systems. The MC74LVX125 requires the 3 state control input (OE) to be set High to place the output into the high impedance state. MC74LVX125 High Speed: tPD = 4.4n.

MC74LVX125_Motorola.pdf

Preview of MC74LVX125 PDF
MC74LVX125 Datasheet Preview Page 2 MC74LVX125 Datasheet Preview Page 3

Datasheet Details

Part number:

MC74LVX125

Manufacturer:

Motorola

File Size:

231.43 KB

Description:

Low-voltage cmos.
