MC74LVX08

Quad 2-Input NAND Gate

MC74LVX08 Features

* High Speed: tPD = 4.8 ns (Typ) at VCC = 3.3 V

* Low Power Dissipation: ICC = 2 mA (Max) at TA = 25°C

* Power Down Protection Provided on Inputs

* Balanced Propagation Delays

* Low Noise: VOLP = 0.5 V (Max)

* Pin and Function Compatible with Other Sta

MC74LVX08 Datasheet (235.79 KB)

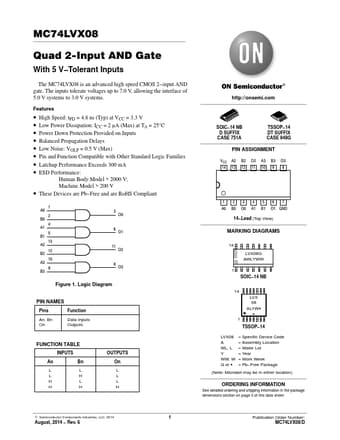

Preview of MC74LVX08 PDF

Datasheet Details

Part number:

MC74LVX08

Manufacturer:

ON Semiconductor ↗

File Size:

235.79 KB

Description:

Quad 2-input nand gate.
MC74LVX08 Quad 2-Input AND Gate With 5 V

*Tolerant Inputs The MC74LVX08 is an advanced high speed CMOS 2

*input AND gate. The inputs t.
