MJH11022 Datasheet - Motorola

MJH11022 15 AMPERE DARLINGTON COMPLEMENTARY SILICON POWER TRANSISTORS

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by MJH11017/D MJH10012 (See MJ10012) Complementary Darlington Silicon Power Transistors . . . designed for use as general purpose amplifiers, low frequency switching and motor control applications. High DC Current Gain @ 10 Adc hFE = 400 Min (All Types) Collector Emitter Sustaining Voltage VCEO(sus) = 150 Vdc (Min) MJH11018, 17 VCEO(sus) = 200 Vdc (Min) MJH11020, 19 VCEO(sus) =.

MJH11022 Datasheet (212.01 KB)

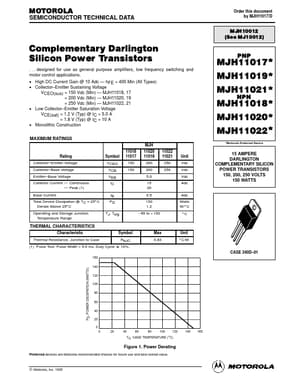

Preview of MJH11022 PDF
MJH11022 Datasheet Preview Page 2 MJH11022 Datasheet Preview Page 3

Datasheet Details

Part number:

MJH11022

Manufacturer:

Motorola

File Size:

212.01 KB

Description:

15 ampere darlington complementary silicon power transistors.
