MSC2295-BT1, NPN RF Amplifier Transistors

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by MSC2295 *BT1/D NPN RF Amplifier Transistors Surface Mount COLLECTOR 3 MSC2295-.

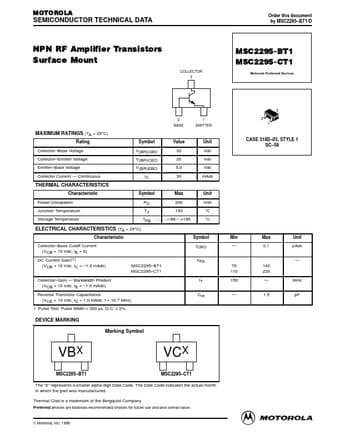

datasheet Preview Page 1 from Datasheet4u.com

MSC2295-BT1_Motorola.pdf

MSC2295-BT1 Datasheet Preview — Preview of MSC2295-BT1 PDF

Datasheet Details

Part number:

MSC2295-BT1

Manufacturer:

Motorola

File Size:

108.13 KB

Description:

NPN RF Amplifier Transistors

Features

* la was negligent regarding the design or manufacture of the part. Motorola and are registered trademarks of Motorola, Inc. Motorola, Inc. is an Equal Opportunity/Affirmative Action

Applications

* Surface mount board layout is a critical portion of the total design. The footprint for the semiconductor packages must be the correct size to insure proper solder connection 0.037 0.95 interface between the board and the package. With the correct pad geometry, the packages will self align when sub
