MUN5230T1, MUN5211T1 Datasheet - Motorola

MUN5230T1 Bias Resistor Transistors

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Bias Resistor Transistor NPN Silicon Surface Mount Transistor with Monolithic Bias Resistor Network This new series of digital transistors is designed to replace a single device and its external resistor bias network. The BRT (Bias Resistor Transistor) contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base-emitter resistor. The BRT eliminates these individual components by integrating them.

MUN5211T1-Motorola.pdf

This datasheet PDF includes multiple part numbers: MUN5230T1, MUN5211T1. Please refer to the document for exact specifications by model.

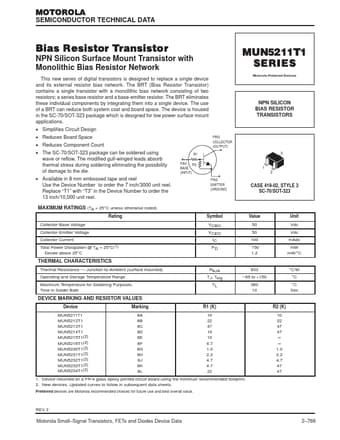

MUN5230T1 Datasheet Preview Page 2 MUN5230T1 Datasheet Preview Page 3

Datasheet Details

Part number:

MUN5230T1, MUN5211T1

Manufacturer:

Motorola

File Size:

110.12 KB

Description:

Bias resistor transistors.

Note:

This datasheet PDF includes multiple part numbers: MUN5230T1, MUN5211T1.
Please refer to the document for exact specifications by model.
