MUN5232DW1 Datasheet - ON Semiconductor

MUN5232DW1 - Dual NPN Bias Resistor Transistors

Dual NPN Bias Resistor Transistors R1 = 4.7 kW, R2 = 4.7 kW NPN Transistors with Monolithic Bias Resistor Network MUN5232DW1, NSBC143EDXV6, NSBC143EDP6 This series of digital transistors is designed to replace a single device and its external resistor bias network. The Bias Resistor Transistor (BRT) contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base-emitter resistor. The BRT eliminates these individual components by integra.

MUN5232DW1 Features

* Simplifies Circuit Design

* Reduces Board Space

* Reduces Component Count

* S and NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable

* These Devices are Pb-Free, Halogen Free/BFR Free and a

MUN5232DW1-ONSemiconductor.pdf

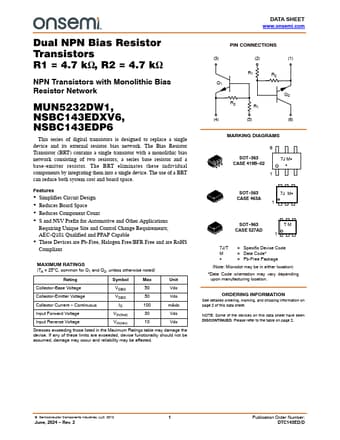

Preview of MUN5232DW1 PDF
