MUN5231, MUN2231 Datasheet - ON Semiconductor

MUN5231 - Digital Transistors

MUN2231, MMUN2231L, MUN5231, DTC123EE, DTC123EM3, NSBC123EF3 Digital Transistors (BRT) R1 = 2.2 kW, R2 = 2.2 kW NPN Transistors with Monolithic Bias Resistor Network This series of digital transistors is designed to replace a single device and its external resistor bias network. The Bias Resistor Transistor (BRT) contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base emitter resistor. The BRT eliminates these individu.

MUN5231 Features

* Simplifies Circuit Design

* Reduces Board Space

* Reduces Component Count

* S and NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable

* These Devices are Pb

* Free,

MUN2231-ONSemiconductor.pdf

This datasheet PDF includes multiple part numbers: MUN5231, MUN2231. Please refer to the document for exact specifications by model.

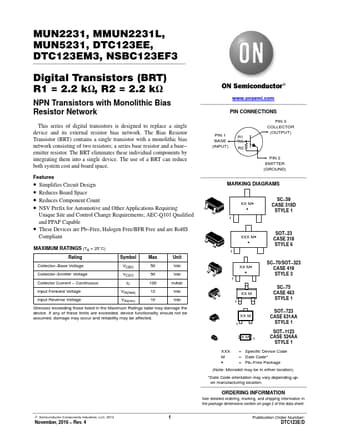

MUN5231 Datasheet Preview Page 2 MUN5231 Datasheet Preview Page 3

Datasheet Details

Part number:

MUN5231, MUN2231

Manufacturer:

ON Semiconductor ↗

File Size:

100.33 KB

Description:

Digital transistors.

Note:

This datasheet PDF includes multiple part numbers: MUN5231, MUN2231.
Please refer to the document for exact specifications by model.
