MUN5232 - Digital Transistors

DATA SHEET www.onsemi.com Digital Transistors (BRT) R1 = 4.7 kW, R2 = 4.7 kW NPN Transistors with Monolithic Bias Resistor Network MUN2232, MMUN2232L, MUN5232, DTC143EE, DTC143EM3, NSBC143EF3 This series of digital transistors is designed to replace a single device and its external resistor bias network. The Bias Resistor Transistor (BRT) contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base emitter resistor. The BR.

MUN5232 Features

* Simplifies Circuit Design

* Reduces Board Space

* Reduces Component Count

* S and NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable

* These Devices are Pb

* Free, Halogen Free/BFR Fr

MUN2232-ONSemiconductor.pdf

This datasheet PDF includes multiple part numbers: MUN5232, MUN2232. Please refer to the document for exact specifications by model.

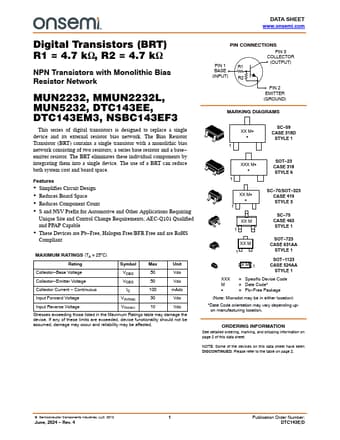

MUN5232 Datasheet Preview Page 2 MUN5232 Datasheet Preview Page 3
