MXR3866 RF TRANSISTOR

MXR3866 CASE 345-01, STYLE 1 SOT-89 RF TRANSISTOR NPN SILICON MAXIMUM RATINGS Rating Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Collector Current Continuous Operating and Storage Junction Temperature Range Symbol vCEO vCBO v EBO ic Tj, Tstg Value 30 55 3.5 0.4 - 55 to + 1 50 Unit V V V A °C THERMAL CHARACTERISTICS Characteristic Total Device Dissipation, T/ = 25°C Derate above 25°C Symbol PD Storage Temperature T stg Thermal Resistance Junc.

MXR3866 Datasheet (28.07 KB)

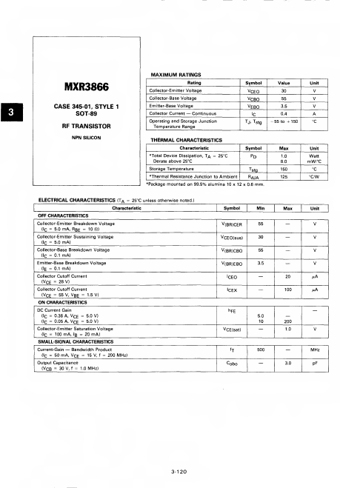

MXR3866 Datasheet Preview — Preview of MXR3866 PDF

Datasheet Details

Part number:

MXR3866

Manufacturer:

Motorola

File Size:

28.07 KB

Description:

Rf transistor.
